ROLLER GATE OPENER
TECHNOLOGY Standard Internal Opening

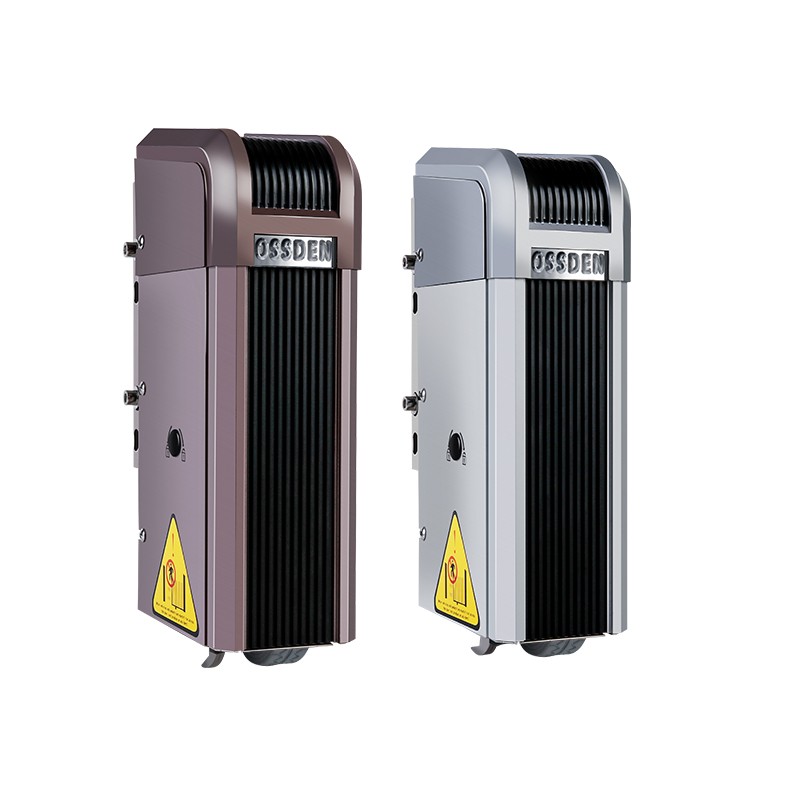

COLOURS
INQUIRY NOW
K680 using advanced technology, this gate opener will be automatically stop against extra resistancesand and is equiped with optional operation mode for single or dual wing to accommodate your needs. To enhance safety and convenience, there is an manual opening design so you will still be able to close the door in case of power failure.
Function and Advantages
1.Soft start and slow stop
2.Automatically stop against extra resistances
3.Operational operation mode for single or dual wing
4.Available for buletooth/Mobile phone app control
5.Interface for card reader and Infrared multifunction
6.Large opening angle>180?
7.Back-up power supply

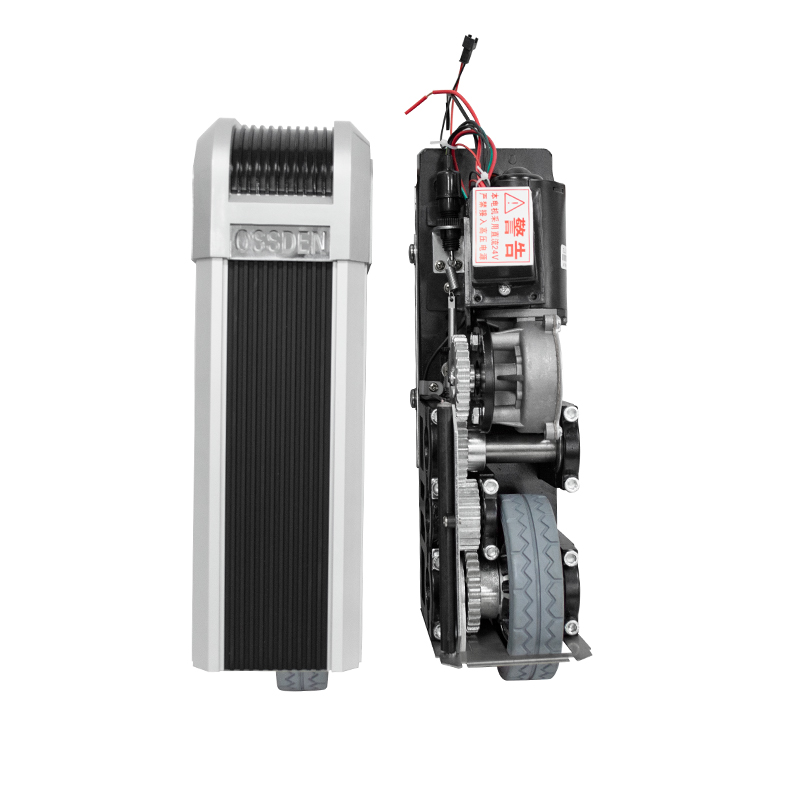

Detailed Photos

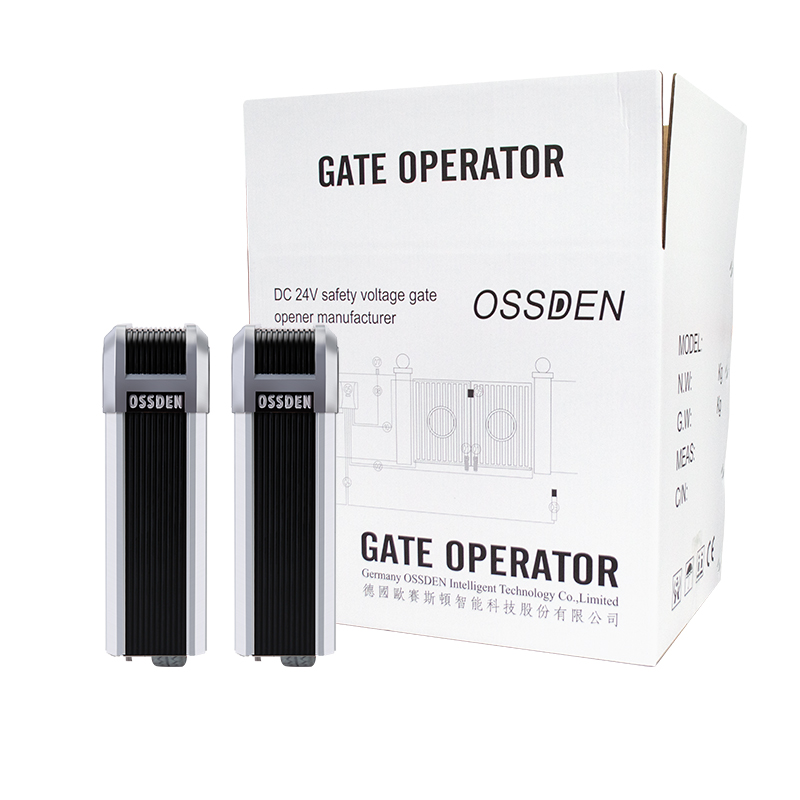

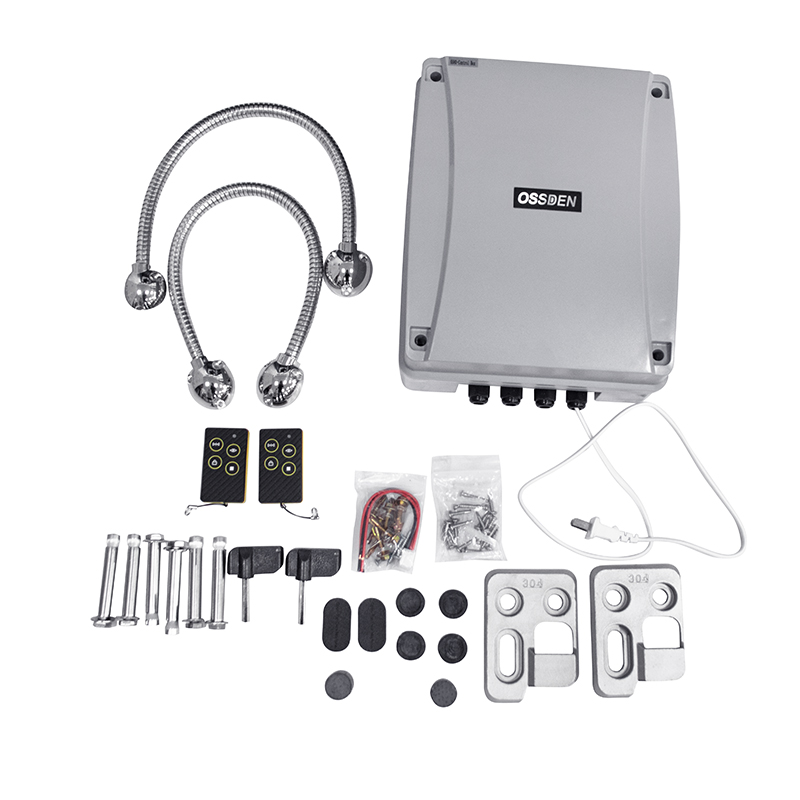

In the Box
Model : | K680 |
---|---|
Input Voltage : | DC24V |
Torque: | 6Nm |
Rating Power: | 40W*2 |
Remote Distance: | 40-60m |
Rotation Speed: | 52rpm |
Running Speed: | 0-15m/min |
Noise: | ≤56dB |
Dimension of Gate Opener: | 350*100*160mm |

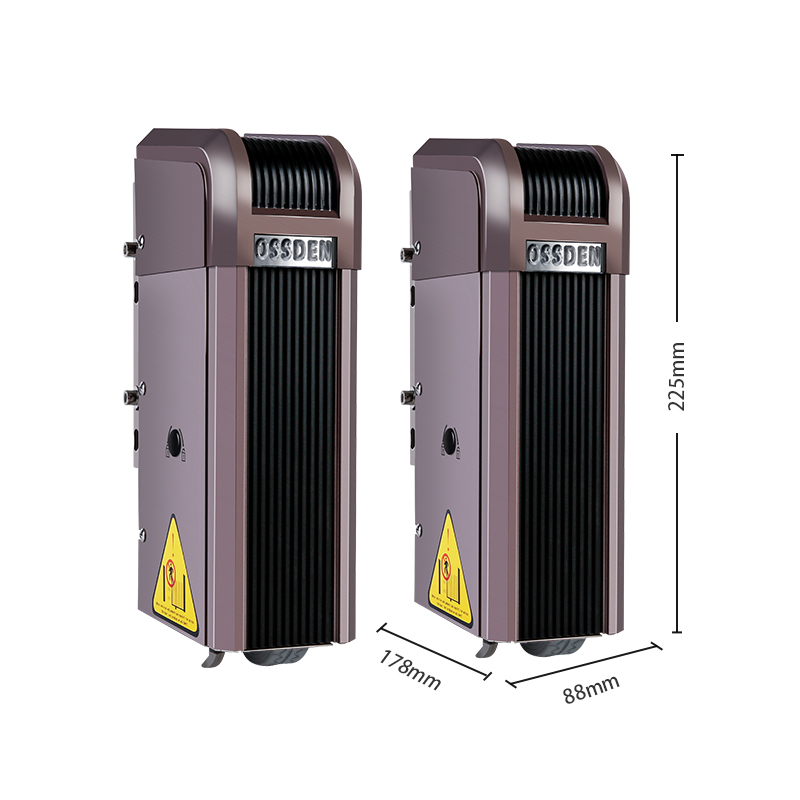

Dimension of Control Box: | 225*178*88mm |
Packing Weight/Set: | 20KG |
Temperature: | -45℃~+65℃ |
Max. Gate Width: | ≤6m |
Max. Gate Weight: | ≤400kg |
Protection Class : | IP44 |
180 Automatic Rolling Swing Gate Opener
180 Automatic Rolling Swing Gate Opener
180 Automatic Rolling Swing Gate Opener
